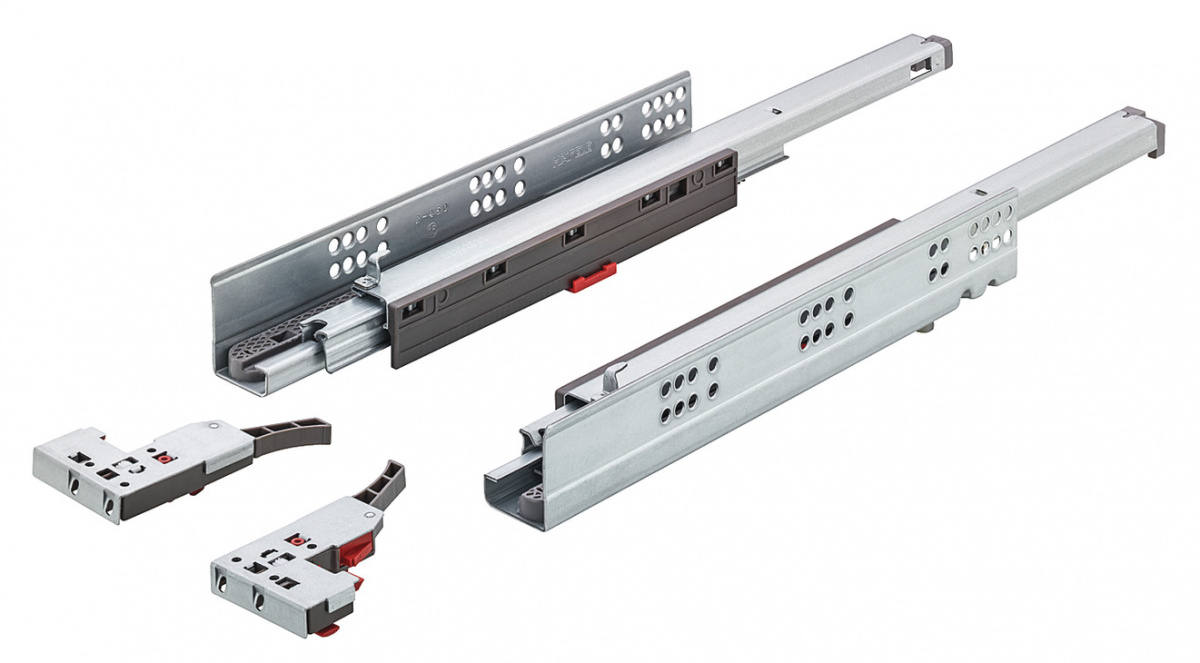

Concealed runner, Häfele Matrix Runner UM A30, full extension, load-bearing capacity up to 30 kg, synchronised running action
Concealed runner, Häfele Matrix Runner UM A30, full extension, load-bearing capacity up to 30 kg, synchronised running action photo 2
Concealed runner, Häfele Matrix Runner UM A30, full extension, load-bearing capacity up to 30 kg, synchronised running action photo 3
Concealed runner, Häfele Matrix Runner UM A30, full extension, load-bearing capacity up to 30 kg, synchronised running action photo 4
Concealed runner, Häfele Matrix Runner UM A30, full extension, load-bearing capacity up to 30 kg, synchronised running action photo 5
Concealed runner, Häfele Matrix Runner UM A30, full extension, load-bearing capacity up to 30 kg, synchronised running action photo 6
Reviews: 0
Add reviewAdd review
Article No.: 433.03.656
Other product variants:
Careful packing of fragile goods
Careful packing of fragile goods
Free delivery in Moscow for orders from RUB 10,000.
Free delivery in Moscow for orders from RUB 10,000.
Warranty and returns
Warranty and returns
Self-pickup: 4 Zelenoye Shosse, bldg. 1
Self-pickup: 4 Zelenoye Shosse, bldg. 1
Gifts with orders from RUB 3,000
Gifts with orders from RUB 3,000
All payment methods accepted
All payment methods accepted
Online orders accepted 24/7
Online orders accepted 24/7
Professional help in choosing products
Professional help in choosing products
Discounts for regular customers
Discounts for regular customers
Express delivery within 2 hours
Express delivery within 2 hours
Loading
Calculating delivery cost
Please wait, the calculation will take a moment

Product description

Model
UM A30
Model series
Runner
Type of pull out
Full extension
Features
Soft and self closing mechanism, synchronized running action
Comfort functions opening/closing
Soft close, Self close
Load bearing capacity
30 kg
Material
Steel
Colour/finish
Zinc plated
For side panel thickness
16 mm
Installation
coupling installation

Specifications

Article No. 433.03.656
Packing unit (pcs) 1
Length (mm) 550
Type With integrated damper
Related products 552.21.716, 552.21.416, 552.21.516,012.15.915, 015.31.832
Catalog element Concealed runner, Häfele Matrix Runner UM A30, full extension, load-bearing capacity up to 30 kg, synchronised running action

CAD data

3D model (Bazis)

3D model
MtxRun.UM A,runner, full ext., pins, soft, sync., 550mm (433.03.656).fr3d .fr3d file for Bazis-Mebelshchik · article 433.03.656
